S228 - 2G GPS Tracker for Truck and Cargo Vans with SOS Alerts and Fuel Monitoring

S228 - 2G GPS Tracker for Truck and Cargo Vans with SOS Alerts and Fuel Monitoring

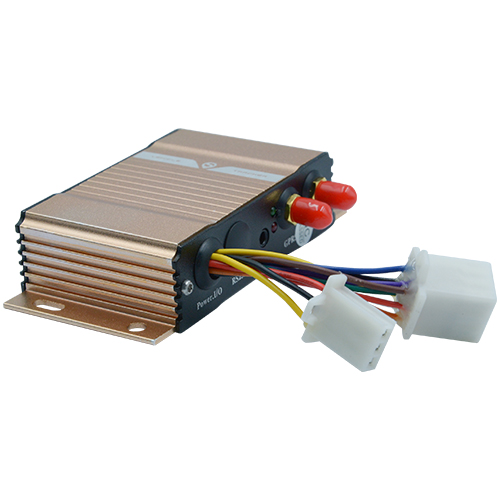

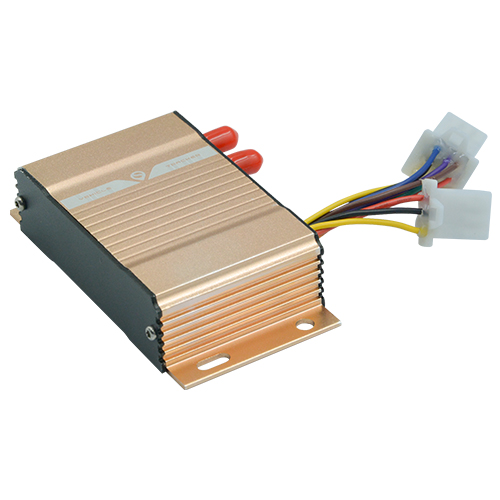

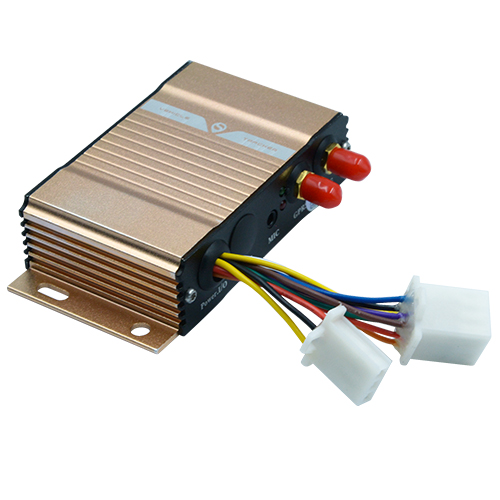

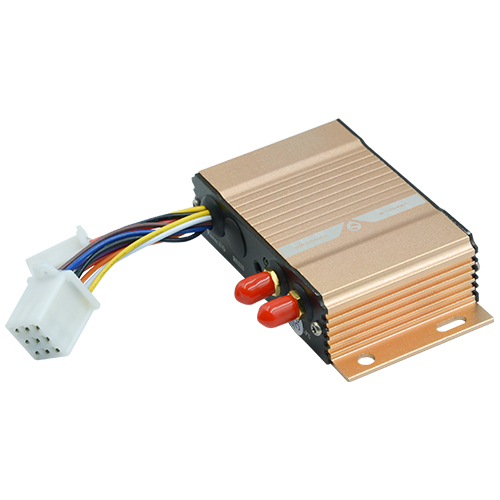

SEEWORLD S228 is a professional GPS tracker for trucks and cargo vans with a 2G network. It features super signal receiving and strong anti-jamming ability by adopting dual external antennas.

Besides, the S228 truck GPS tracker equips with high precision oil amount sensor, users can real-time monitor the changes in oil amount for anti-theft.

S228 is one of the best GPS tracking devices for engineering trucks, and refrigerated trucks with multiple anti-theft alarms such as power-off alarm, low battery alarm, low-temperature alarm, rapid acceleration/deceleration alarm, ACC alarm, SOS emergency call, GEO-fence alarm, automatic door warning, fatigue driving alarm, parking alarm, oil amounts alarm, etc.

Also, it is a flexible GPS tracker for customization businesses with powerful SPI.

Feature of this GPS tracker for trucks:

  • High precision positioning, with 3-5 meters error range
  • Support I/O and RS232 extended function ports
  • High precision oil amount sensor for real-time oil monitoring
  • Support GPS/BDS/LBS locating modes
  • IPx7 dust, waterproof and fireproof design
  • Super signal receiving ability, strong anti-jamming ability with adopting dual external antennas
  • Built-in large memory which can store 12000 pieces of supplementary data
  • Multiple anti-theft alarms

SEEWORLD truck GPS tracker S228 is suitable for:

  • Engineering trucks
  • Refrigerated trucks
  • Special vehicle dispatching
  • Fleet management industries

Product Parameters

Additional information

Weight 0.158 kg
Dimensions 10.1 × 6.5 × 2.4 cm
GSM

850/900/1800/1900Mhz

GPRS

Class 12,TCP/IP,UDP/IP

Working times

1 hours

Chip specification

Ublox/SiRF-Star III

Positioning accuracy

<10 meters

Support input voltage range

8VDC~36VDC

TTFF(Open Sky)

Avg.hot start ≤1s ; Avg.cold start ≤42s

Working temperature

-20℃ ~ +70℃

Data storage quantity

30000

C/A Coding

1.023 MHz chip rate

GPS Sensitivity

-159dBm

Product Functions

Speeding Alarm

When the vehicle is over-speed, then it will be detected and send an alarm.

Remote Cut Off Fuel and Electricity ​

Owner can remotely make the car flame out.

Geo-Fence

A virtual area set on platform by yourself, you‘ll be informed when vehicle crossing its boundary.

SOS Alarm

When the driver is facing accidents or abnormal situations, he/she can use it to send an SOS alarm.

Vibration Alarm

When the car has abnormal vibration it will send an alamm.

Remote Voice Listening (Optional)​

The mobile phone dials the locator card number, and the locator automatically answers the live voice
