W20L is a solar-powered asset tracking device with cellular and satellite connectivity, designed for reliable operation in remote and no-signal environments.
It is ideal for shipping containers, land transport assets, non-powered trailers, and fishing vessels.
Key Features
Dual connectivity: Cellular + Satellite for continuous tracking
Long-lasting power: High-efficiency solar charging with 12,000mAh battery
Rugged design: IP67 waterproof, built for harsh outdoor conditions
Bluetooth support: Connects to temperature & humidity sensors, beacons, and door sensors
6-axis motion sensor: Detects dumping, rollover, and abnormal movement
Anti-tamper alarm: Hall-effect sensor for installation security
Water fall detection: Alerts when the device falls into water
External wired interface: Supports ACC detection, fuel & power cut-off, fuel level monitoring, SOS alarm, and more
Applications: Dry Cargo Container Tracking, Fishing Vessel Monitoring, Trailer Asset Tracking
| Positioning Mode | GPS, BDS, LBS, WIFI (optional) |
|---|---|
| Positioning Band | L1, B1 |
| Positioning Precision | <2.5m CEP |
| Tracking Sensitivity | -163 dBm |
| Capturing Sensitivity | -158 dBm |
| Positioning Time | Avg.hot start <1s |
| Communication Standard | LTE Cat1/Satellite communication |
| Max Output Power | 4.2V |
| Operating Current | <60mA |
| Standby Current | < 2 μA |
| Battery | 12000 mAh |

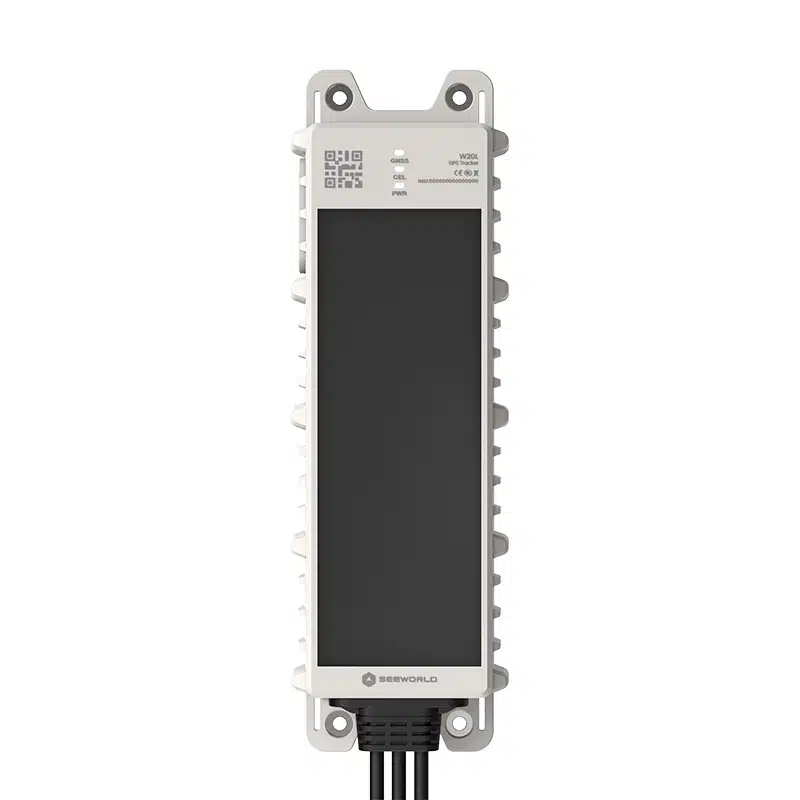

| LED Indication | GSM（Blue），GPS(Green)，Power（Red） |

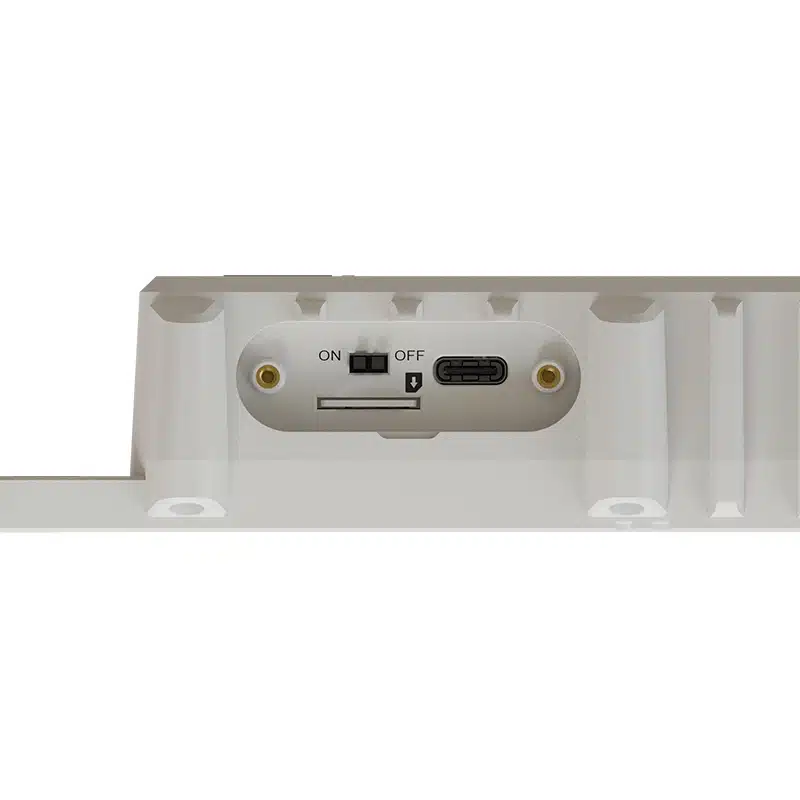

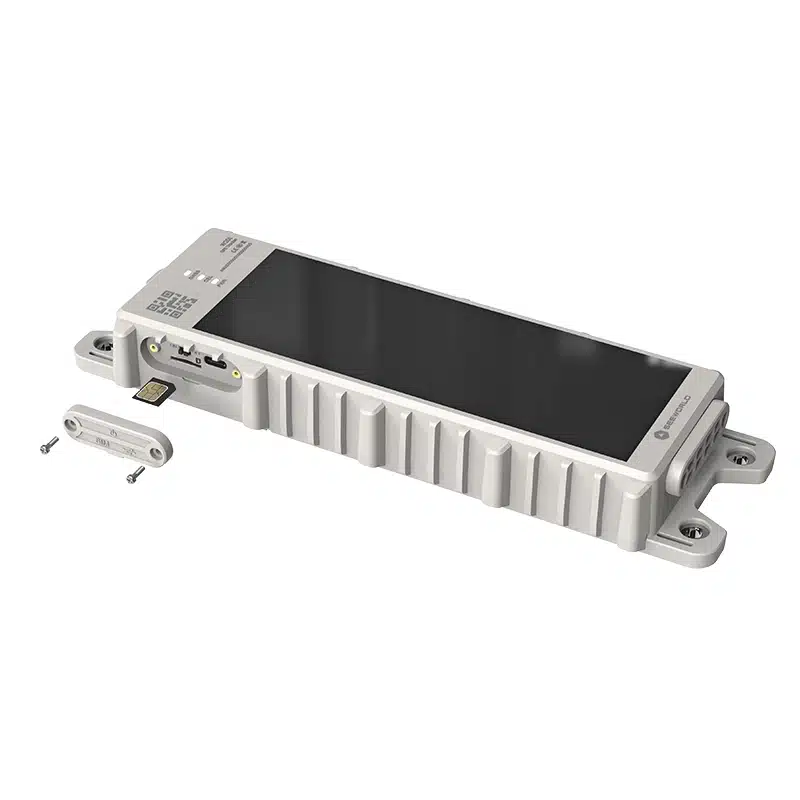

| Card Slot | Micro SIM card/e-SIM |
| Protection Rating | IP67 |
| Operating Temperature | -20℃ ~ +70℃ |
| Operating humidity | 10%~85%RH |
Optimize and streamline your delivery process to drive efficiently.
Optional peripherals to monitor temperature and humidity to gain visibility into your operations and help save money.
Trigger an alarm when the device battery is about to run out of charge.

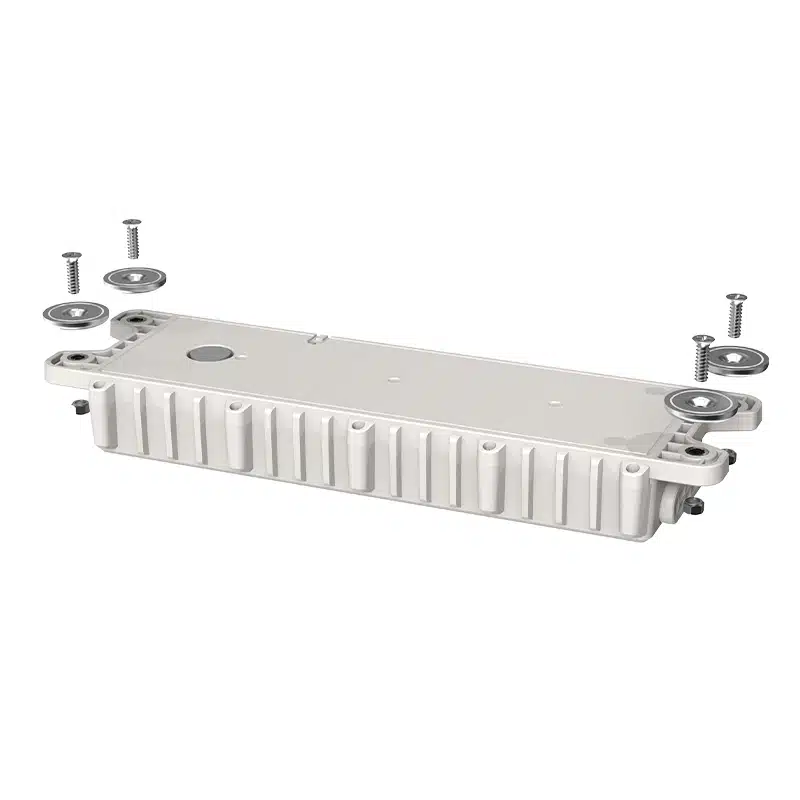

Near-zero installation：the tracker tightly and effortlessly fastens to most metal surfaces.
Instant alerts for atypical events such as car fault, overspeed, ignition detection, collision, geo-fence entry/exit, etc.
Using OTA technology doesn’t just promote security updates to be sent to devices. It also encourages new functionality to be rolled out.
