V6 - 4G Dash Cam for Car with ADAS and Live GPS Tracking

V6 - 4G Dash Cam for Car with ADAS and Live GPS Tracking

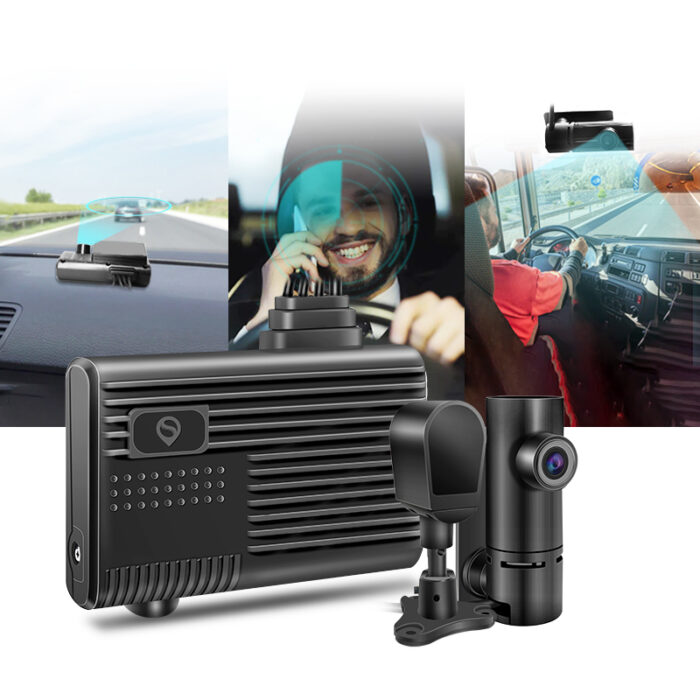

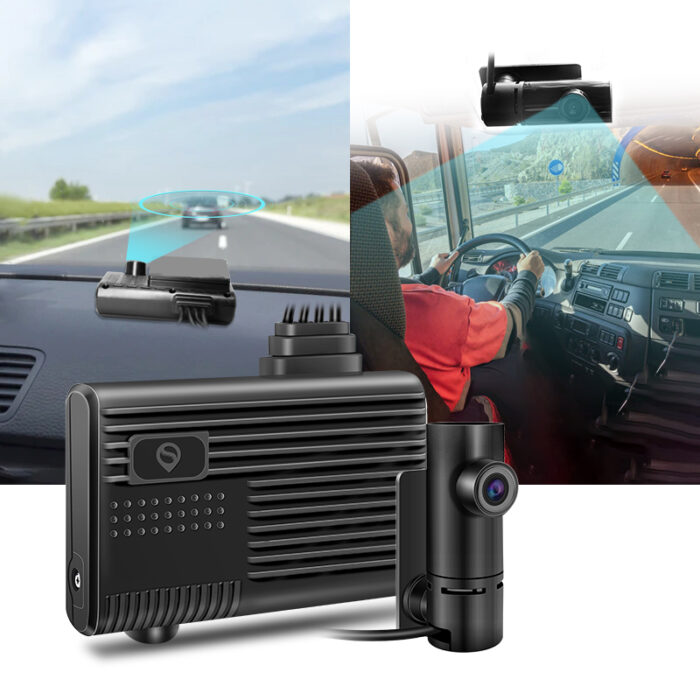

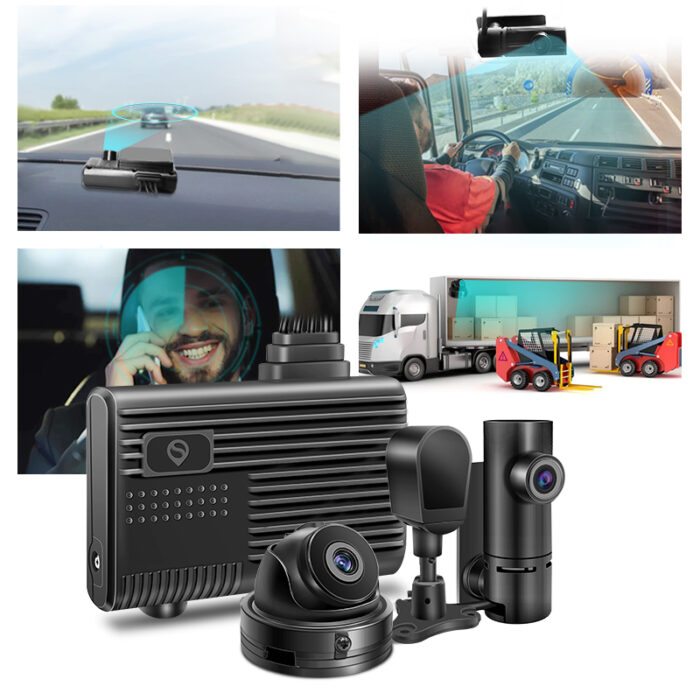

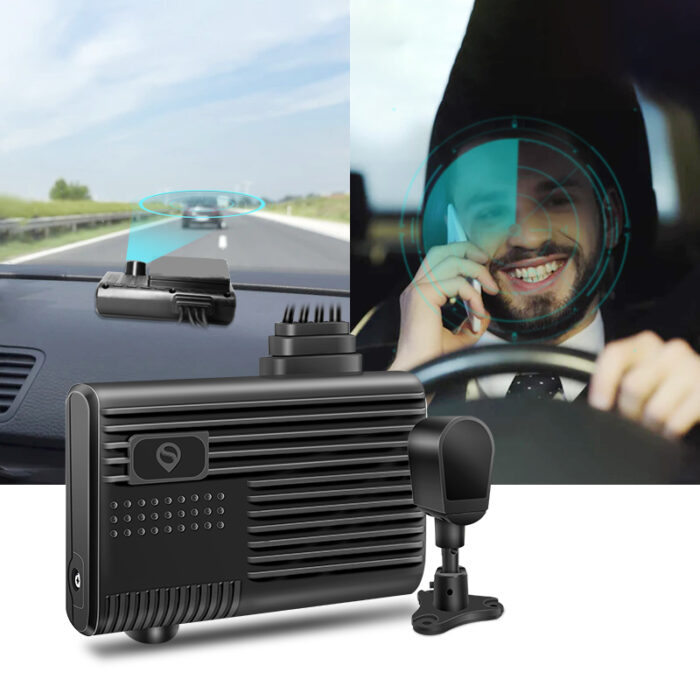

V6 is an LTE dash cam designed specifically for use in commercial vehicles, is capable of recording 4 separate channels simultaneously, and provides valuable ADAS and DMS algorithms that actively assist drivers to increase awareness and safety on the road. Ideal for ride-hailing fleets, insurance telematics, car dealerships, and more.

Features:

  • Support Driver Monitoring System(DMS);
  • Support Advanced Driver Assistance System(ADAS);
  • Support for the global multi-base station and satellite positioning modes;
  • Support for HD video recording (1080p);
  • Support for 24-hour real-time video monitoring and location parking monitoring;

Product Parameters

Additional information

Voltaje Operativo

DC 10V – 36V

Corriente de Trabajo

420 mAh/12V (corriente en reposo: 6mAh/12V)

Red de Comunicación

4G/3G/2G

Precisión de Posicionamiento

<10 Meters

Bandas de Frecuencia

EC200A-CN China, Asia
LTE FDD: B1/3/5/8
LTE TDD: B34/38/39/40/41
WCDMA: B1/5/8
GSM/EDGE: B3/8

EC200A-AU Latin America, Australia
LTE FDD : B1/2/3/4/5/7/8/28/66
LTE TDD: B40
WCDMA: B1/2/4/5/8
GSM/EDGE: B2/3/5/8

EC200A-EU European
LTE FDD : B1/3/5/7/8/20/28
LTE TDD: B38/40/41
WCDMA: B1/5/8
GSM/EDGE: B3/8

EC25-AF North America
LTE FDD: B2/4/5/12 /13/14/66/71
WCDMA: B2/4/5

Opciones de Cámara

Cámara ADAS (Principal): longitud focal 3.6MM/4 lentes/apertura F2.0/60°H 1080P, día y noche a todo color

Cámara Interior (opcional): longitud focal 2.8MM/4 lentes/F2.0/115°D 720P filtro doble automático color a negro

Cámara DMS (opcional): longitud focal 6MM/4 lentes/F2.0/45°H 720P día y noche en blanco y negro

Cámara Doméstica Interior (opcional): longitud focal 2.8MM/4 lentes/F2.0/115°D 720P día y noche en blanco y negro

Medio de Almacenamiento

Clase 10 y superior, soporte máximo para dos tarjetas TF de alta velocidad de 8~128G

Tiempo de Posicionamiento

Inicio rápido <5s

Rango de Temperatura de Trabajo

-20℃~+60℃

Tamaños Estándar

L110mm*W70mm*H28mm

Período de Garantía

1 año

Product Functions

Collision Alarm

If the vehicle accidentally has a collision or rollover, then the GPS tracker will send an alarm.

Driver-facing Camera(DMS)

The driver-monitoring camera uses an AL algorithm to detect your driver's status gives out audible alerts to remind driver.

Road-facing Camera (ADAS)

The ADAS algorithm embedded enables the device to warn drivers of possible collisions to prevent safety-critical incidents.

Photo Search

One key remote capture, access to the vehicle environment photos, location information, search the car easier.

Remote Video Monitoring

Real-time monitoring of vehicle status at any time and anywhere.

History Video Playback

Convenient and fast to remote access to video files in the memory card.

Product Applications
