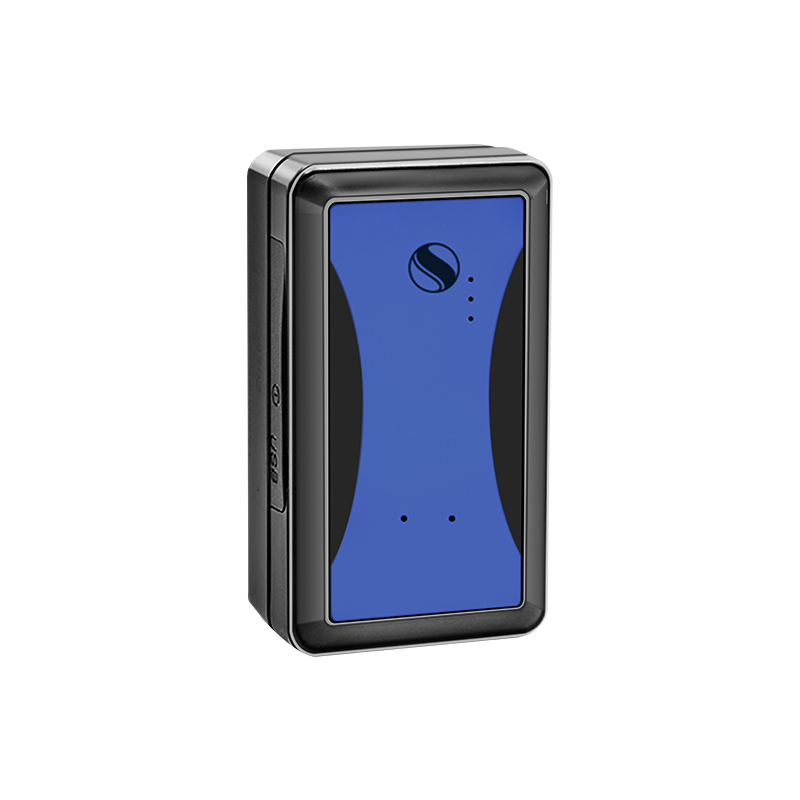

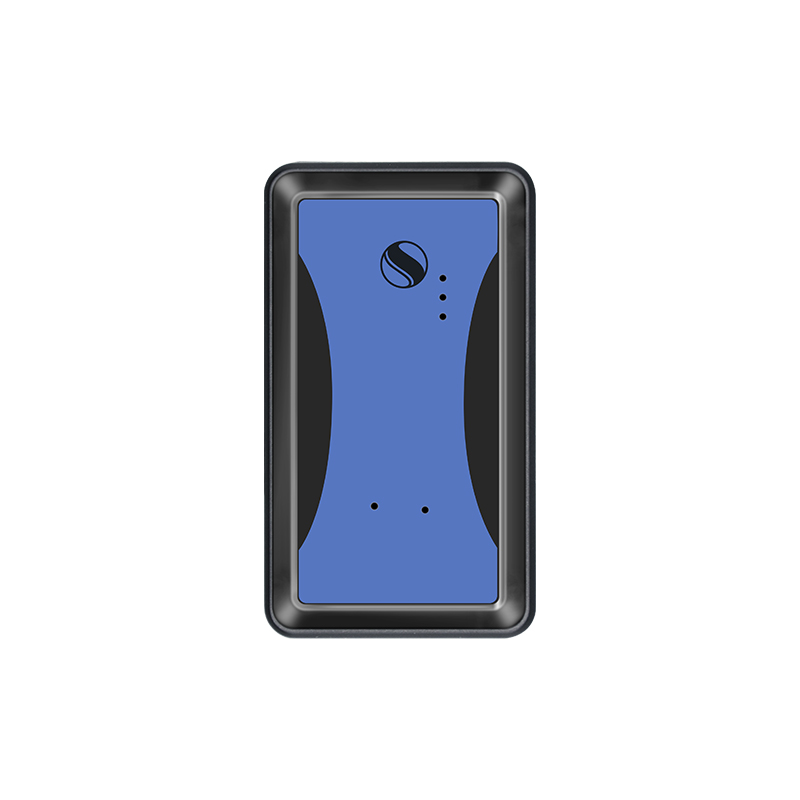

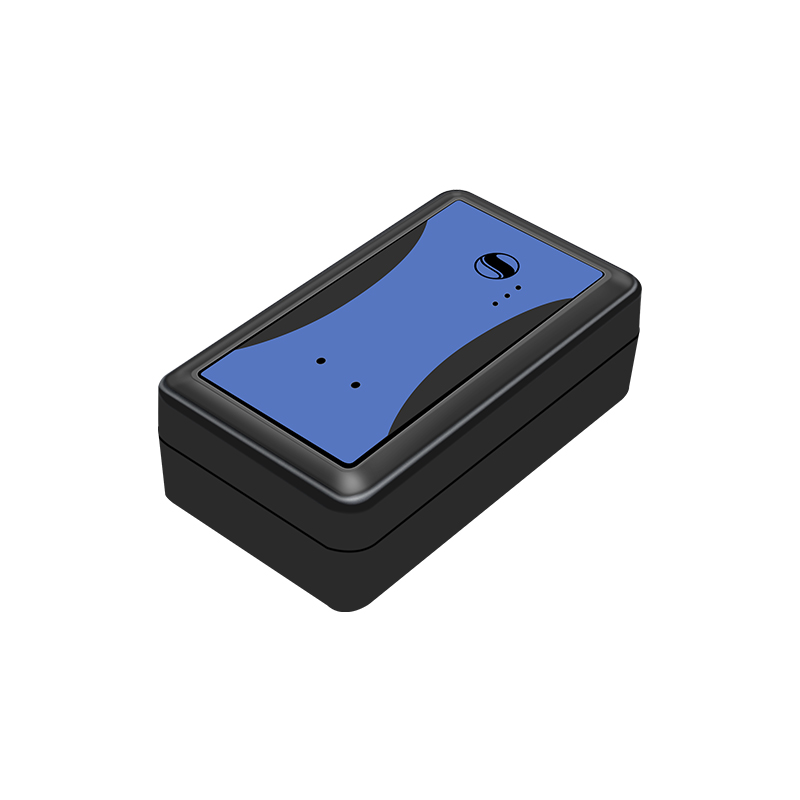

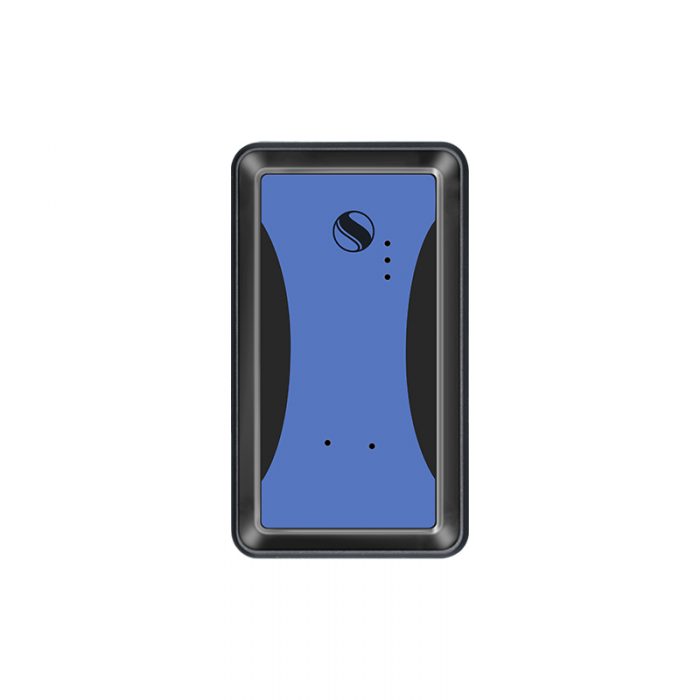

This S16LB magnetic wireless GPS tracker for asset and fleet management is based on 4G communication technology. It adopts an AT6558R chip and features stable communication, high positioning accuracy, low static drift, and low power consumption.
The S16LB asset GPS tracker also supports satellite positioning, BeiDou positioning, single-base station, and multi-base station positioning modes.
Besides, the asset tracking device has an intelligent power-saving mode based on sensor design, supports flexible switching of multiple working modes, and can be used in many different applications.
Real-time monitoring and geofencing with boundary alerts are included in our S16LB asset GPS tracker, which keeps you informed and give you peace of mind. Our S16LB magnetic wireless tracker for assets is simple to use and allows you to personalize your settings to get vital information such as vibration alarms, low battery alarms, speed alarms, etc. through text, push notification, or email.
S16LB compact asset GPS tracking gadget comes with an ultra-strong, non-slip magnetic shell and is simple to install on your assets, boat, commercial vehicle, or motorcycle. The waterproof materials can withstand the harshest weather conditions such as rain, sun, wind, and snow.
S16LB mini GPS tracker is compatible with MAC, PC, iPhone, and Android devices, and it locates and maps people, vehicles, and assets in real-time using web-based software.
Features of the S16LB GPS tracker for assets:
This portable tracking device can be widely used for:
| GSM RF chip | S2916-51 |
|---|---|
| GSM channel | TDD B34/38/39/40/41 |
| GPRS class | Class12,TCP/IP |
| Body menmory | 8MB |
| Phase error | 0±5 |
| Communication protocol | TCP |
| Maximum output | GSM900 32.5±1.0dBm GSM1800 29.5 ±1.0 dBm |
| Maximum frequency error | 0±90 |
| GPS chipset | AT6558R |
| Positioning mode | GPS+BDS+LBS |
| Frequency | 1575.42-1602Mhz |
| Number of channel | 66 |
| Positioning accuracy | <10.0m |
| Tracking sensitivity | -162dBm |
| Capture sensitivity | -160dBm |
| Positioning time | <32s |
| Operating voltage range | 3.8 V |
| Battery | 3000mAh lithium polymer battery |
| Storage capacity o f blind spot track points | 400 |
| Operating temperature | -20℃~+70℃ |
| Frequency Band | 900/1800MHz，FDD-LTE B1/B3/B5/B8 |
| Working Humidity | 5%～95% |
| Device size | 71mm×41mm×25.5mm |
| Weight | 208g |
| Working Time | Cold start≈40s |
Owner can remotely monitor the car anytime, anywhere.
Owner can remotely monitor the car anytime, anywhere.
When the car has abnormal vibration it will send an alarm.
When the car is in low-battery it will send an alarm.
A virtual area set on platform by yourself, you‘ll be informed when vehicle crossing its boundary.
When the vehicle is over-speed, then it willl be detected and send an alarm
