S16LA - 4G Mini Micro GPS Tracker for Asset, Fleet, and Vehicle Management with Extended Battery Life

S16LA - 4G Mini Micro GPS Tracker for Assets, Fleet, and Vehicle Management with Extended Battery Life

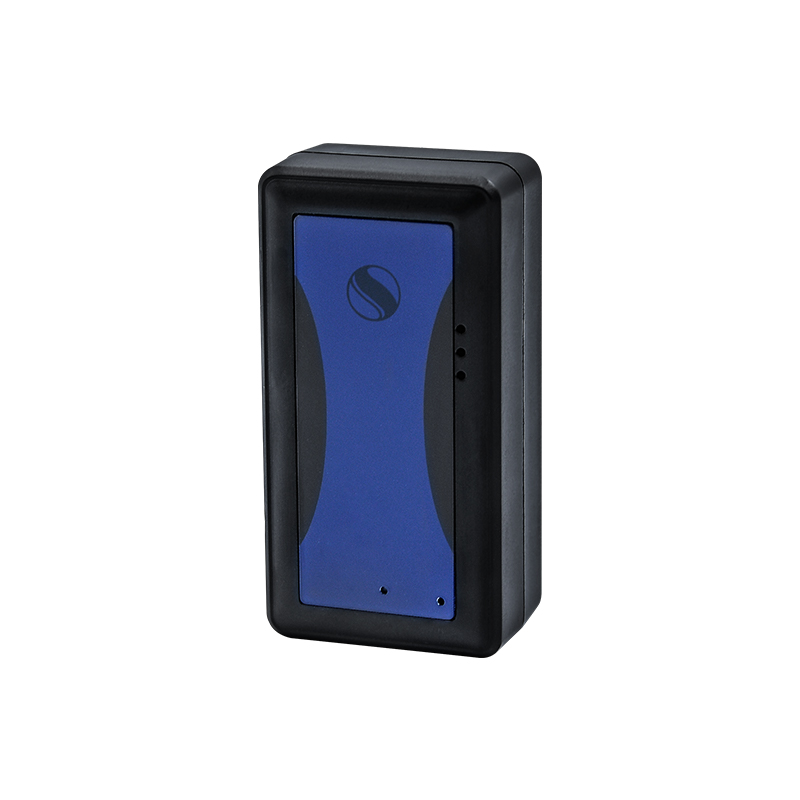

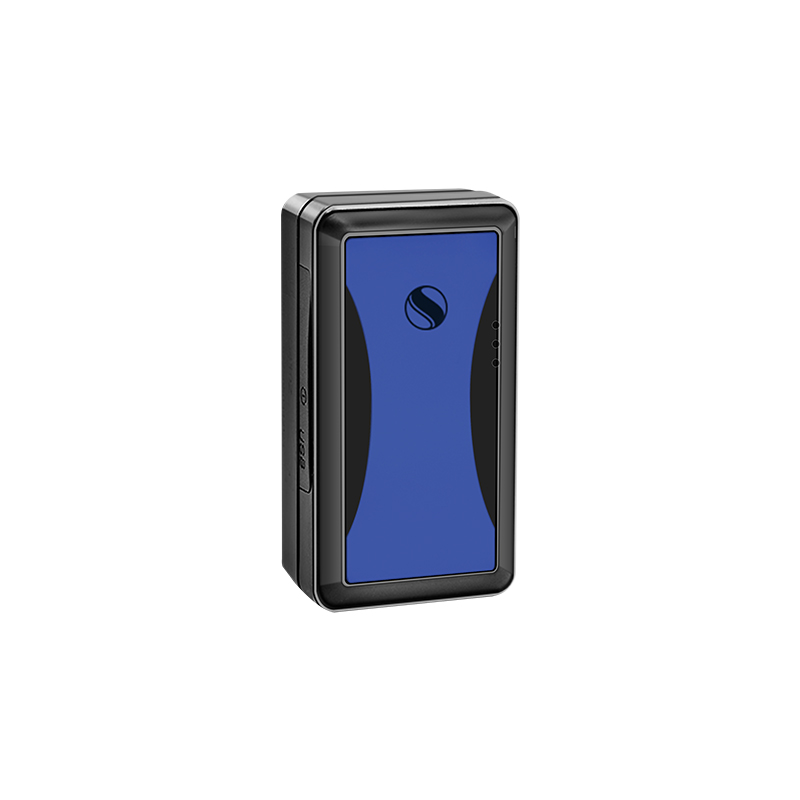

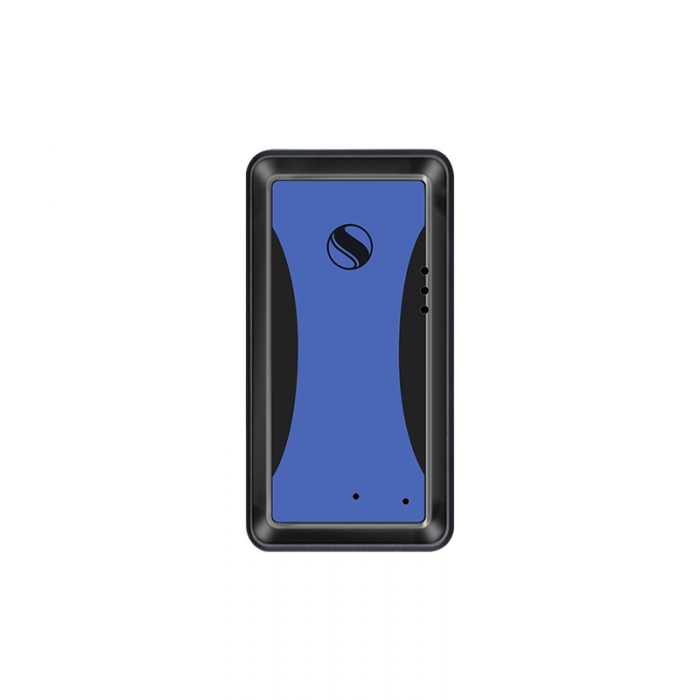

S16LA is a mini wireless 4G GPS tracker for assets, fleet, and working vehicles management.  The S16LA vehicle tracker is small, light, and powerful, and it comes with a water-resistant magnetic shell that can be attached to vehicles, motorcycles, or other vehicles you want to track.

This portable asset tracking device is roughly the size of a regular automobile key fob and can track just about everything.

With this magnetic GPS tracker, you can track both vehicles, working equipment, rented car, and anything else you’ve spent time and money on.

Furthermore, the S16LA micro GPS tracker for assets updates its data more frequently than many competitors, which allows the user to keep an almost real-time eye on the car and vehicles. For consumers who wish to keep track of a driver’s location, performance, and safety, this model gives the most value for money.

While the device is a bit more expensive than other wireless GPS trackers, the $8 yearly subscription fee makes up for it down the road.

Features of this portable vehicle tracker:

  • Support multiple working modes: regular reporting, real-time tracking, intelligent tracking, remote switch on and off
  • Support low battery alarm, vibration alarm, speeding alarm, single-fence, and multi-fence alarms
  • Built-in anti-disassembly device, high-sensitivity SENSOR, support
  • Adopt AGPS assisted positioning to speed up the positioning speed
  • Support remote monitoring and automatic recording
  • Support blind spot retransmission
  • Support driving behavior analysis
  • With powerful magnets, installation without broken wires
  • Waterproof IP65

The S16LA can be widely used for:

  • Heavy equipment
  • Containers, trucks, and trailers
  • Buses and taxi
  • Assets and fleet management
  • Car rental
  • Other

Product Parameters

Additional information

GSM RF chip

S2916-51

GSM channel

TDD B34/38/39/40/41
FDD B1/B3/B5/B8E
GSM 850/900/1800/1900MHz

GPRS class

Class12,TCP/IP

Communication protocol

TCP

Body memory

8MB

Phase error

0±5

Maximum output

GSM900 32.5±1.0dBm GSM1800 29.5 ±1.0 dBm

Maximum frequency error

0±90

GPS chipset

AT6558R

Positioning mode

GPS+BDS+LBS

Frequency

1575.42-1602Mhz

Number of channel

66

Positioning accuracy

<10.0m

Tracking sensitivity

-162dBm

Capture sensitivity

-160dBm

Positioning time

<32s

Operating voltage range

3.8 V

Battery

1200mAh lithium polymer battery

Storage capacity o f blind spot track points

400

Operating temperature

-20℃~+70℃

Working Humidity

5%~95%

Device size

61mm×32mm×20.5mm

Weight

122g

Working Time

Cold start≈40s
Warm start≈30s
Hot start≈5s

Product Functions

Vibration Alarm

With built-in vibration sensor, an alarm will be sent immediately when the vehicle has abnormal vibration.

Remote Voice Listening

Owner can remotely monitor the car anytime, anywhere.

Low Battery Alarm

When the car is in low-battery it will send an alarm.

Over-speed Alarm

When the vehicle is over-speed, then it willl be detected and send an alarm.

GEO- fence

A virtual area set on platform by yourself, you‘ll be informed when vehicle crossing its boundary.

Remote Voice Recording

Owner can record voice remotely.

Product Application
